Tube de ferrite à ailettes recuit d'acier allié d'ASTM A213

Quantité de commande min : 1 tonnes Détails d'emballage : Par paquets ou dans des boîtes en bois packaging.as par options des clients.
Délai de livraison : 30-35days Conditions de paiement : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement : 5000 tonnes par an
Lieu d'origine: Zhejiang, Chine Nom de marque: TORICH
Certification: ISO14001:2008,TS16949 Numéro de modèle: ASTM A213

Détail Infomation

Numéro de modèle: ASTM A213 MTC: EN10204.3.1
Méthode de production: Sans couture ou soudé Caractéristique: Tube à ailettes
Finition: Recuit Alliage ou pas: Est l'alliage
Type: Sans couture/fabriqué Longueur: Longueur aléatoire et coupée aléatoire et double simple
Extrémité de tuyauterie: L'extrémité simple, extrémité biseautée, a marché forme: Etc. rond, carré, rectangulaire, hydraulique
Surligner:

Tube de ferrite d'acier allié

,

tube d'acier allié d'ASTM A213

,

tube en acier à ailettes recuit

Description de produit

ASTM A213 Seamless Ferritic and Austenitic Alloy-Steel Boiler, Super heater, and Heat-Exchanger Tubes



Product Description:

ASTM A213 standard is a common used specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Super heater, and Heat-Exchanger Tubes, offering manufacture and purchasing requirements for manufactures and users, main information contain grade, size, finishes, test and other terms, the equivalent standard is ASME SA213.

Table 1, chemical composition %

Grade C Si Mn Cr Ni Mo S P
TP304 0,08 1,0 2 18 – 20 8 – 11 0,03 0,045
TP304L 0,035 1,0 2 18 – 20 8 – 12 0,03 0,045
TP316 0,08 1,0 2 16 – 18 11 – 14 2 – 3 0,03 0,045
TP316L 0,035 1,0 2 16 – 18 10 – 14 2 – 3 0,03 0,045
TP321 0,08 1,0 2 17 – 19 9 – 12 0,03 0,045

Table 2, mechanical properties and solution temperature (Min, degree centigrade).

Grade Tensile Strength(Mpa) Yield Point(Mpa) Elongation(%) Hardness(HRB) Solution Temperature
TP304 515 205 35 90 1040
TP304L 485 170 35 90 1040
TP316 515 205 35 90 1040
TP316L 485 170 35 90 1040
TP321 515 205 35 90 1040

ASTM A213 Seamless Tube Sizes And Dimensions

The tubing sizes and thicknesses usually furnished to this specification are 1/8 inch [3.2 mm] in inside diameter to 5 inch [127 mm] in outside diameter and 0.015 to 0.500 in. [0.4 to 12.7 mm].

Custom outside diameter and wall thickness are listed as below, tubing having other diameters may be furnished, provided such tubes comply with all other requirements of this specification.

Outside Diameter 15.8, 16.0, 19.05, 22, 25, 28, 38.1, 57, 60.3, 76.2, 88.9 Mm
Wall Thickness 1.24, 1.65, 2.5, 2.77, 3.02 Mm

ASTM A213 Tolerances, Outside Diameter, Wall Thickless And Length

OD, Mm W.T, Mm L, Mm
≤25.4 ±0.10 +20%, 0% OD>50, T>5.6, AVG Wall +/-10% OD<50.8,+3mm
OD>=50.8, +5mm
25.4~38.1 ±0.15
38.1~50.8 ±0.2
50.8~63.5 ±0.25
63.5~76.2 ±0.3
76.2~101.6 ±0.38


ASTM A213 Testing Requirement

Each tube shall be subjected to the nondestructive electric test or hydrostatic test, Manufacturer Material Test Certification as per EN 10204 3.1 should be provided.

  • Tensile property, Elogation
  • Hardness testing, Brinell, Rockwell, Vickers hardness
  • Flattening testing
  • Flaring testing
  • Hydrostatic or Nondestructive test
  • Intergranular Corrosion Test – ASTM A262/E (option)



Product Pictures:

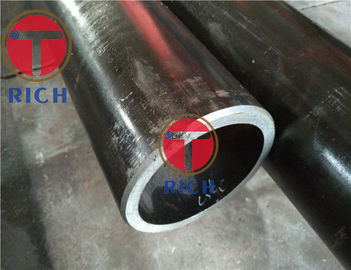

Tube de ferrite à ailettes recuit d'acier allié d'ASTM A213 0

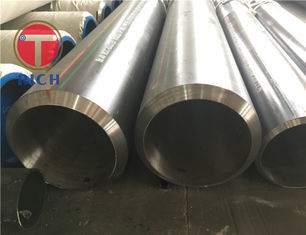

Tube de ferrite à ailettes recuit d'acier allié d'ASTM A213 1

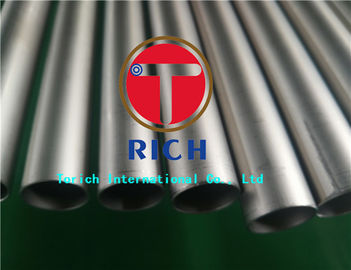

Tube de ferrite à ailettes recuit d'acier allié d'ASTM A213 2



We are professional ASTM A213 seamless tube manufacture & supplier, having capability to produce wide range size seamless tube for heat exchanger system, manufacturing process starts from extrusion of billet, by cold rolling and cold drawn methods to control size and tolerance, heat treatment will be finished after cold working to achieve original steel properties, which improve high temperature resistance and corrosion resistance, then tubes should be under pickling passivation condition.





Packing and Delivery :

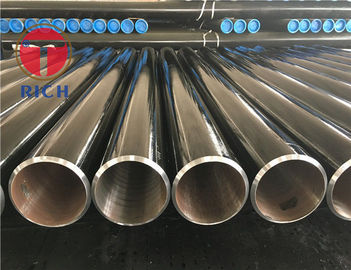

Tube de ferrite à ailettes recuit d'acier allié d'ASTM A213 3



FAQ:

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.



ASTM A213  Seamless Ferritic and Austenitic Alloy-Steel Boiler, Super heater, and Heat-Exchanger Tubes
