Catégorie | C | Manganèse | SI | S | Co | Ni | Cr | Fe | MOIS | P |
C276 | 0,010 maximum | 1,00 maximum | 0,08 maximum | 0,03 maximum | 2,50 maximum | min* 50,99 | 14,50 – 16,50 | 4,00 – 7,00 | 15,00 – 17,00 | 0,04 maximum |
Propriétés mécaniques
Élément | Densité | Point de fusion | Résistance à la traction | Limite conventionnelle d'élasticité (0.2%Offset) | Élongation |
Hastelloy C276 | 8,89 g/cm3 | °C 1370 (°F) 2500 | Livre par pouce carré – 1,15,000, MPA – 790 | Livre par pouce carré – 52 000, MPA – 355 | 40 % |
Catégorie matérielle équivalente
NORME | WERKSTOFF NR. | UNS | JIS | GOST | En | OU |
Hastelloy C276 | 2,4819 | N10276 | Nanowatt 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |

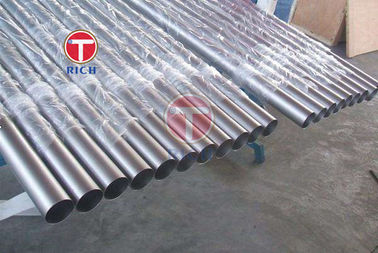

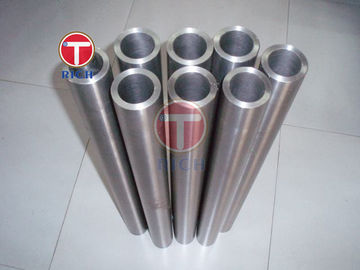

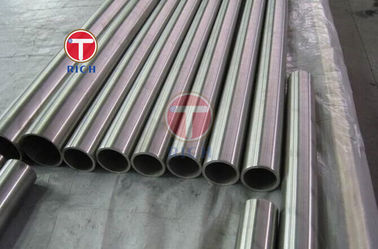

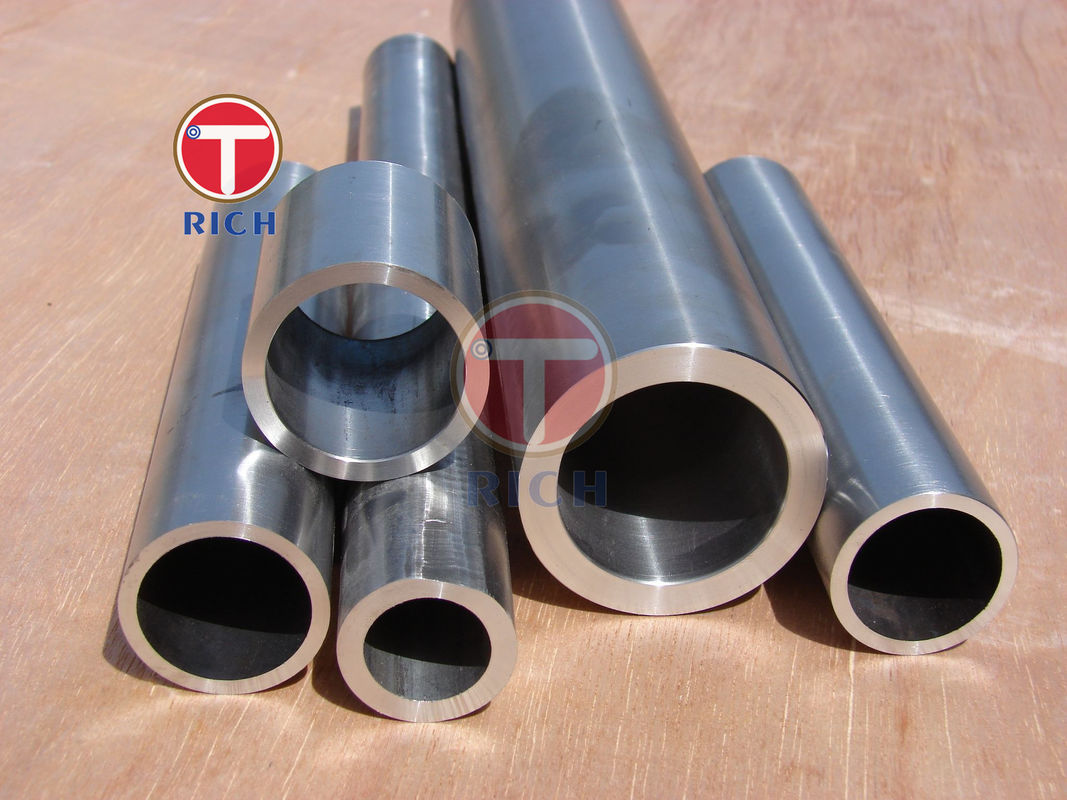

Images de produit :
