Nom De Marque: | TORICH |
Numéro De Modèle: | 304 PVC Coated Stainless Steel Tubing |
Quantité De Produit: | 1Ton |
Prix: | 800-1300 USD/Ton |
Conditions De Paiement: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Capacité à Fournir: | 60000 Ton/Tons per Year |
Stainless steel tubing is widely used in various industries due to its excellent corrosion resistance, strength, and durability. When combined with a protective PVC coating, stainless steel tubing offers additional protection against environmental factors, making it ideal for water supply systems and other demanding applications. This article discusses different grades of stainless steel tubing (201, 304, 316, 321, 347), focusing on their material composition, specifications, chemical composition, mechanical properties, key features, applications, and equivalent grades.
The stainless steel tubing covered here includes commonly used grades:

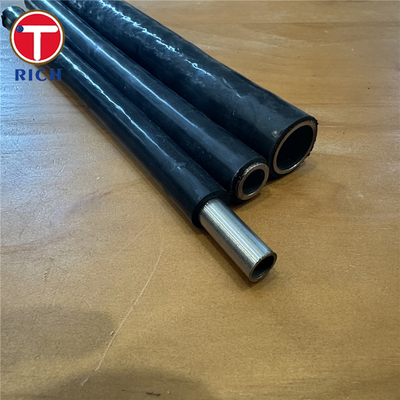

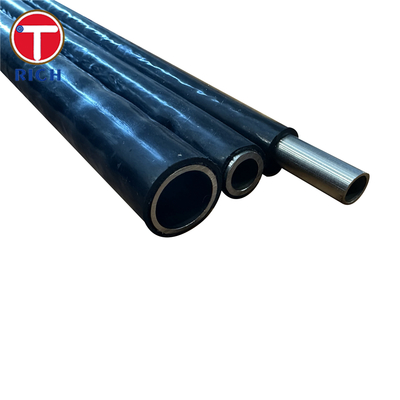

PVC coating on stainless steel tubing provides an extra layer of protection from abrasion, moisture, and other external factors.
Parameter | Typical Value/Range |
---|---|
Diameter Range | 6mm to 168mm (custom sizes available) |
Wall Thickness | 0.5mm to 2.0mm |
Length | Customized lengths up to 6 meters |
Finish | BA (Bright Annealed) |
Coating Thickness | 0.2 - 0.5 mm (PVC coating) |
Standards | ASTM A269, ASTM A213, DIN, JIS |
Grade | C | Mn | Si | P | S | Cr | Ni | Mo | Ti/Nb |
---|---|---|---|---|---|---|---|---|---|
201 | ≤0.15 | 5.5-7.5 | ≤1.0 | ≤0.035 | ≤0.03 | 16-18 | 3.5-5.5 | - | - |
304 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 18-20 | 8-10 | - | - |
316 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 16-18 | 10-14 | 2-3 | - |
321 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 17-19 | 9-12 | - | Ti: 5×C minimum |
347 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 17-19 | 9-13 | - | Nb: 10×C minimum |
Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
---|---|---|---|
201 | 520 - 750 | ≥205 | ≥25 |
304 | 520 - 750 | ≥205 | ≥40 |
316 | 515 - 690 | ≥205 | ≥40 |
321 | 515 - 690 | ≥205 | ≥30 |
347 | 515 - 690 | ≥205 | ≥30 |
Grade | ASTM | JIS | DIN | EN | UNS |
---|---|---|---|---|---|
201 | S20100 | SUS201 | X12CrMn17-7 | 1.4372 | S20100 |
304 | S30400 | SUS304 | X5CrNi18-10 | 1.4301 | S30400 |
316 | S31600 | SUS316 | X5CrNiMo17-12-2 | 1.4401 | S31600 |
321 | S32100 | SUS321 | X6CrNiTi18-10 | 1.4541 | S32100 |
347 | S34700 | SUS347 | X6CrNiNb18-10 | 1.4550 | S34700 |
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
·
