Tube d'acier des DOM

A513-T5 SAE 1020 or 1026 Drawn Over Mandrel Tubing - DOM Round Steel Tubing Material is SAE 1020,1026 Chemistry Composition of SAE 1020,1026 DOM steel tubing: SAE 1020 C 0.18-0.23 Si Mn 0.30-0.60 P max 0.040 S max 0.050 SAE 1026 C 0.22-0.28 Si Mn 0.60-0.90 P max 0.040 S max 0.050 DOM Steel Tube is produced using uniformly high quality C1020 steel strip and is formed and electric resistance welded into its basic shape. Metallurgically, drawing improves the tube’s concentricity

61X50 DIN2393 ST52-3 DOM steel tubes for hydraulic telescobic cylinder Quick detail Material :1020 St52-3 Q345B Size : 63*52 80*68 98*85 116*103 135*121 154.5*140 175*159.5 197*180 220*202mm Tolerance of OD: (+1.2/1.8mm) Tolerance of ID:(0,-0.2mm) Length :as per your requests. Straightness ≤0.3/1000mm oval tube ≤0.1 Tensile resistance ≥640MPa Yield ≥550Mpa Elongation ≥12% Hardness 80-100HRB -20℃ 27J 100% Ultrasonic flaw detection St52-3 steel plate Chemical analysis Chemical

Grades 4130 Chromoly Alloy Steel Pipe Grade AISI 4130 is a low alloy steel pipe that contains elements such as chromium and molybdenum added to its allot as strengthening agents. As compared to conventional carbon alloy pipes, the AISI 4130 Pipe is more receptive to treatments either by heat or by mechanical means. The low content of carbon in AISI 4130 facilitates superior welding operations. The good strength and its hardenability make chromoly 4130 pipe a good fit for

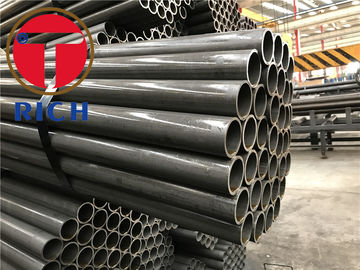

4130 Mandrel Drawn DOM Tubing 4130 DOM tubing is an alloy steel grade known as Chromoly. Chromoly is a combination of the words "chromium" and "molybdenum." Both are imperative to steel alloying; chromium adds strength and toughness to the element, and molybdenum adds corrosion resistance and can endure extreme temperatures. Chromoly steel possesses enhanced strength and hardness. As an alloy, it helps give steel different properties to makes it can be controlled and refined.

1026 Round DOM Mild Steel Tubing 1026 DOM steel tubing is made from steel that is of a low /mild carbon (non-alloy) and this kind of steel has been developed for the primary purpose of creating wrought products. 1026 seamless tubing is commonly used in construction, appliances and automobiles. The carbon content of this steel can be upto 0.28%, but according to AISI standards, this steel would still qualify as grade 1026 steel. these seamless tubes are manufactured by various

ASTM A513 1020 DOM Tubing Square Tubing Sizes 0.188” to 12.000” O.D. with 0.028” to 0.625” W.T. Length Stocked in 17.000’ - 24.000’ random lengths (cut to length available) Single Random, Double Random & Required Length, Custom Size - 12 Meter lengths Added Service Draw & Expansion as per required Size & Length Heat Treatment, Bending, Annealed, Machining Etc. End Connections Plain, Screwed, Bevel, Threaded Type Seamless / Welded / ERW / Fabricated / CDW ASTM A513/ ASME SA513

1020 1015 1010 ASTM A513 Stress Relieved Annealing Automotive Steel Tube Introduction: Name 1020 1015 1010 ASTM A513 Stress Relieved Annealing Automotive Steel Tube OD 15-100mm WT 1- 10mm Standard ASTM A513 Usage Mechanical Tubing Material Mt1010,1020,1015 Packing Packing in bundles Payment T/T,L/C,Western Union,Money Gram Delivery FOB,CIF,CFR,CPT Chemical components: Grade Carbon Manganese Phosphorus max Sulfur max 1010 0.05-0.15 0.3-0.6 0.035 0.035 1015 0.1-0.2 0.3-0.6 0

Drawn Over Mandral 1020 ASTM A513 BK Automotive Industry Carbon Tube Introduction: Name Drawn Over Mandral 1020 ASTM A513 BK Automotive Industry Carbon Tube OD 15-100mm WT 1- 10mm Standard ASTM A513 Usage Mechanical Tubing Material Mt1010,1020,1015 Packing Packing in bundles Payment T/T,L/C,Western Union,Money Gram Delivery FOB,CIF,CFR,CPT Chemical components: Grade Carbon Manganese Phosphorus max Sulfur max 1010 0.05-0.15 0.3-0.6 0.035 0.035 1015 0.1-0.2 0.3-0.6 0.035 0.035

54.1*48 1020 ASTM A513 DOM Automotive Industry Carbon Steel Piping Introduction: Name 54.1*48 1020 ASTM A513 DOM Automotive Industry Carbon Steel Piping OD 15-100mm WT 1- 10mm Standard ASTM A513 Usage Mechanical Tubing Material Mt1010,1020,1015 Packing Packing in bundles Payment T/T,L/C,Western Union,Money Gram Delivery FOB,CIF,CFR,CPT Chemical components: Grade Carbon Manganese Phosphorus max Sulfur max 1010 0.05-0.15 0.3-0.6 0.035 0.035 1015 0.1-0.2 0.3-0.6 0.035 0.035
