Tube de coude en U

TORICH ASTM B395 Cold Drawn Seamless Copper Alloy Tubes C68700 C71500 C68700,Copper Pipe U Bend Introduction: Product name Cold drawn seamless U bend tube OD 5-420mm WT 0.5-50mm Usage Heat exchanger, condenser, heaters Section shape Round Technics Cold drawn Type Seamless QUALITY CONTROL: 1. Incoming Raw Material Inspection 2. Raw Material Segregation to avoid steel grade mix-up 3. Heating and Hammering End for Cold Drawing 4. Cold Drawing and Cold Rolling, on line inspection

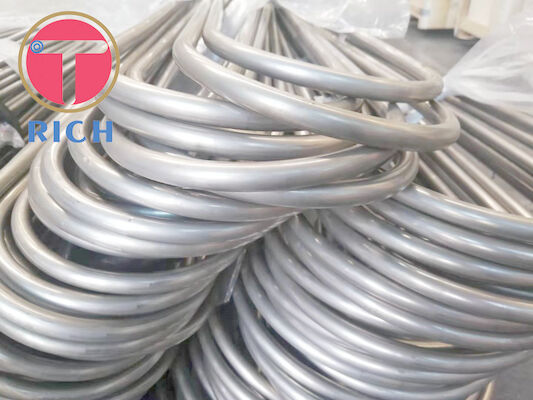

ASTM B395 ASTM B111 C71500 C44300 H96 H62 H55 light-drawn U Bend Copper Tube Condenser and Heat Exchanger Tube Name seamless copper (nickel) pipe Standard ASME SB165, SB111, etc. Material C10100, C10200, C12000, C28000, C12200, C44300(brass alloys), C70600(90-10), C68700(CZ110 Aluminium barss alloy), C71500(70-30), C71640(66-30-2-2),etc. OD 6-219.1mm WT 0.7-12.7mm Length 0-38000mm Surface treatment solution annealing/Light Draw/Stress Relieving Heat Treatment Test requirement

ASTM A179 Seamless Cold-Drawn Low-Carbon U-Bend Steel Pipes for Condenser Applications: Heat-Exchanger and Condenser Tubes Size range: O.D.:15-600mm W.T.:0.6-30mm L: according to customer requirement Steel Grade and Chemical Compositions: C 0.06-0.18 Mn 0.27-0.63 P ≤0.035 S ≤0.035 Mechanical Properties Tensil Streghth: min ksi[Mpa] 47[325] Yield Point: min ksi[Mpa] 26[180] Elongation: ≥35% Hardness: ≤72HRB How is your production capability? 1.2000 tons monthly production

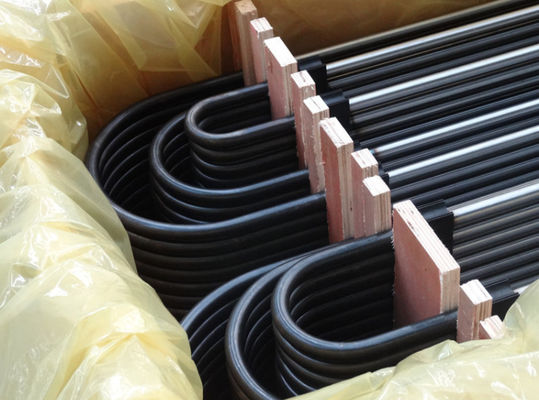

U bend Tubes Stainless Steel ASTM ASME SA213 TP316 U-bent Tubes for Heat Exchanger Underfloor Heating Tube Grage: Austenitic stainless steel u bent tube 201/202/301/304/304L/316/316L/321 Ferritic stainless steel pipe/tube 409/430/439/441/443/436L/444/445J1/445J2/445J3/S44660/447 Duplex stainless steel pipe/tube S31803/S32750 Size: stainless steel pipe Φ6.35 Φ8.0 Φ9.5 Φ10 Φ12.7 Φ15.88 Φ19.1Φ 20.0Φ 22.2 Φ25.4 Φ31.8 Φ38.1 Φ40 Φ42.7 Φ50.8 Φ63.5 Φ76.2 Φ88.9 Φ101 Thickness

Low Carbon Heat Exchanger Seamless Steel Tube , ASTM A179 U Bend Tubes PRODUCT DETAILS : Standard:ASTM A179 ASME A179Material:Carbon SteelType:U BendingProduction:Cold DrawnApplication:Heat Exchangers,Cold CondensorsDimension:OD 15.88-114mm ASTM A179 Seamless Cold Drawn Low Carbon Steel Heat Exchanger Tubes and Condenser Tubes Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger Tubes and Condenser Tubes Applications:For BoilersSuperheatersHeat-ExchangersCondensers U bend

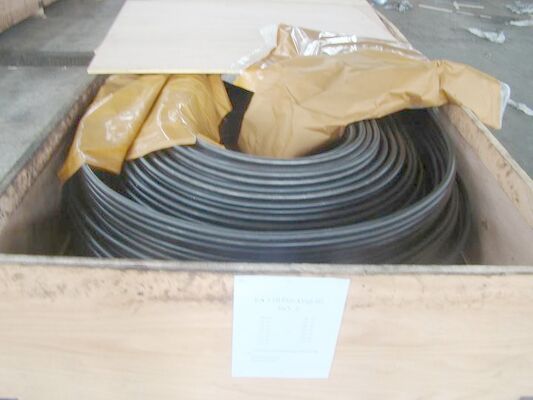

ASTM A179 A192 U Bend Tubes For Heat Exchanger Shell Product Overview ASTM A179 / ASTM A192 U bend tubes are seamless carbon steel tubes manufactured for shell-and-tube heat exchangers, boilers, condensers, and similar thermal equipment where compact bundle design, reliable pressure resistance, and stable heat-transfer performance are required. ASTM A179 is typically selected for seamless cold-drawn low-carbon heat exchanger and condenser tubing, while ASTM A192 is used for

S235JR U-Shaped Structural Steel Pipe Galvanized Carbon Steel Pipe for Construction This product is a galvanized carbon steel structural component manufactured from S235JR non-alloy structural steel. It is designed for construction projects that require dependable load-bearing capacity, good weldability, easy fabrication, and improved outdoor corrosion resistance through hot-dip galvanizing. In practical supply, S235JR is the base steel grade under EN 10025-2, while the

ASTM A179 U-Bend Tube — Cold-Drawn Seamless Low-Carbon Steel Tubing for Heat Exchangers Material ASTM A179 U-bend tubes are seamless, cold-drawn low-carbon steel tubes that are formed into a U-shape for shell-and-tube heat exchangers, condensers, coolers, and similar heat-transfer equipment. The base tube is produced by the seamless process and cold drawing, then bent to the required radius/leg length with strict control of dimensional stability and surface condition.

ASTM B395 U-Bend Seamless Copper & Copper-Alloy Tubes for Heat Exchangers Material ASTM B395/B395M U-bend tubes are 180°-bent, seamless tubes used in condensers, evaporators, and heat exchangers, manufactured from seamless copper and copper-alloy tube. The specification applies to tubes ≤ 2 in. (50 mm) OD and covers common heat-transfer alloys including oxygen-free copper (C10200), phosphorus-deoxidized copper (C12200), admiralty/aluminum brass (C44300/C68700), and copper
