SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery

SAE J525 Hydraulic Tube

Thick Wall Precision Steel Tube

Mild Steel Alloy Hydraulic Tube

Nom de marque:

TORICH

Certification:

ISO9001 ISO 14001 TS16949

Numéro de modèle:

SAE J525

Contactez-nous
Demandez une citation
Détails de produit
Application:
instruments de précision
Diamètre extérieur (rond):
30 - 426 mm,
Épaisseur:
0.1 mm à 100 mm
Forme de section:
Ronde, rectangulaire
Standard:
ASTM, DIN, GB, JIS, API
Technique:
Dessin à froid, roulé à chaud, à froid, erw, roulé à chaud / à froid dessiné
Grade:
1020 E235 STKM11A
Longueur:
6M ou selon les besoins, selon les besoins du client,
Mettre en évidence:

SAE J525 Hydraulic Tube

,

Thick Wall Precision Steel Tube

,

Mild Steel Alloy Hydraulic Tube

Conditions de paiement et d'expédition
Quantité de commande min
1 tonne
Prix
800-1000USD/Ton
Détails d'emballage
En paquets ou dans des boîtes en bois.
Délai de livraison
20 à 30 jours sur les produits
Conditions de paiement
L / C, D / A, D / P, T / T, Western Union, Moneygram
Capacité d'approvisionnement
60000 tonnes / tonnes par an
Description du produit

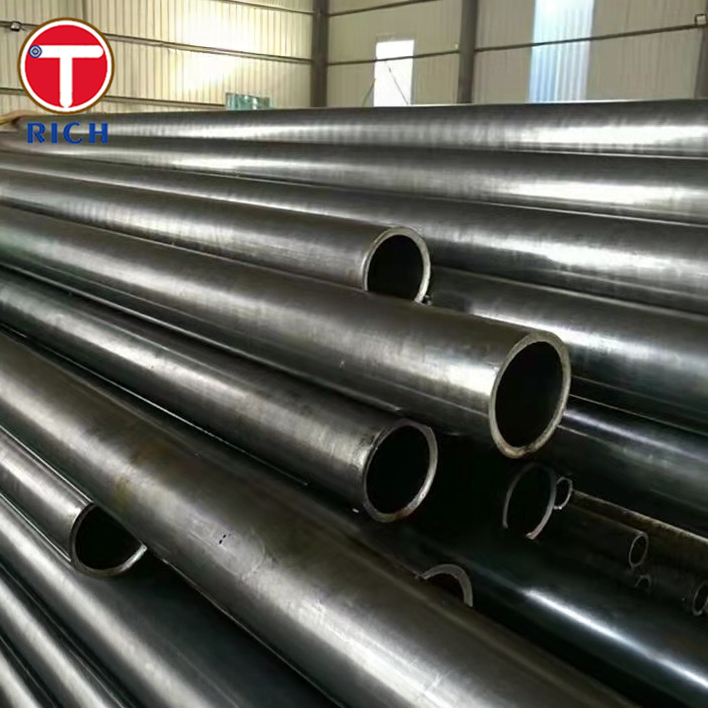

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 0

SAE J525 Thick Wall Mild Steel Tube – Alloy Hydraulic Tube for Precision Instruments

Material

SAE J525 tubing is manufactured from high-quality mild carbon steel, processed by electric resistance welding and then fully normalized to achieve uniform grain structure and excellent ductility. It is specifically designed as a hydraulic tube with thick walls to handle pressure applications while ensuring precision and safety.

Specifications

  • Standard: SAE J525

  • Manufacturing Process: Electric Resistance Welded (ERW), Normalized

  • Wall Thickness: Thick wall, per SAE J525 requirements

  • Shape: Round tube

  • Finish: Smooth, suitable for bending and flaring

Chemical Composition (Typical, wt%)

Grade C (%) Mn (%) P (%) S (%) Fe (%)
SAE J525 ≤0.18 0.30–0.60 ≤0.035 ≤0.035 Balance
ASTM A179 ≤0.06 0.27–0.63 ≤0.035 ≤0.035 Balance
ASTM A513 Type 5 (1020) 0.18–0.23 0.30–0.60 ≤0.040 ≤0.050 Balance
EN 10305-4 E235 ≤0.17 ≤1.20 ≤0.025 ≤0.025 Balance
JIS STKM11A ≤0.15 0.30–0.60 ≤0.030 ≤0.030 Balance

Mechanical Properties

Grade Tensile Strength (MPa) Yield Strength (MPa) Elongation (%) Hardness (HRB)
SAE J525 290–430 ≥180 ≥35 ≤72
ASTM A179 ≥325 ≥180 ≥35 ≤72
ASTM A513 Type 5 (1020) 350–450 ≥210 ≥25 ≤85
EN 10305-4 E235 340–480 ≥235 ≥25 ≤80
JIS STKM11A ≥290 ≥180 ≥30 ≤72

Key Features

  • Excellent formability, bendability, and flare capability

  • Uniform grain structure due to full normalization

  • High dimensional accuracy and smooth internal surface

  • Reliable for hydraulic systems under pressure

  • Enhanced safety in precision instruments applications

Applicable Standards

  • SAE J525 (North America)

  • ASTM A179 / ASTM A513 (USA equivalent options)

  • EN 10305-4 (European equivalent)

  • JIS G3445 STKM series (Japanese equivalent)

  • GB/T 3639 (Chinese equivalent for precision tubes)

Applications

SAE J525 tubes are primarily used in hydraulic and pneumatic systems where safety and precision are critical.

  • Automotive Industry: Brake lines, fuel lines, hydraulic power steering systems

  • Industrial Machinery: Hydraulic cylinders, fluid power systems, lubrication lines

  • Precision Instruments: Measuring and control systems requiring high reliability

  • Construction Equipment: Hydraulic lines for excavators, loaders, and cranes

  • Aerospace & Marine: Specialized hydraulic control systems

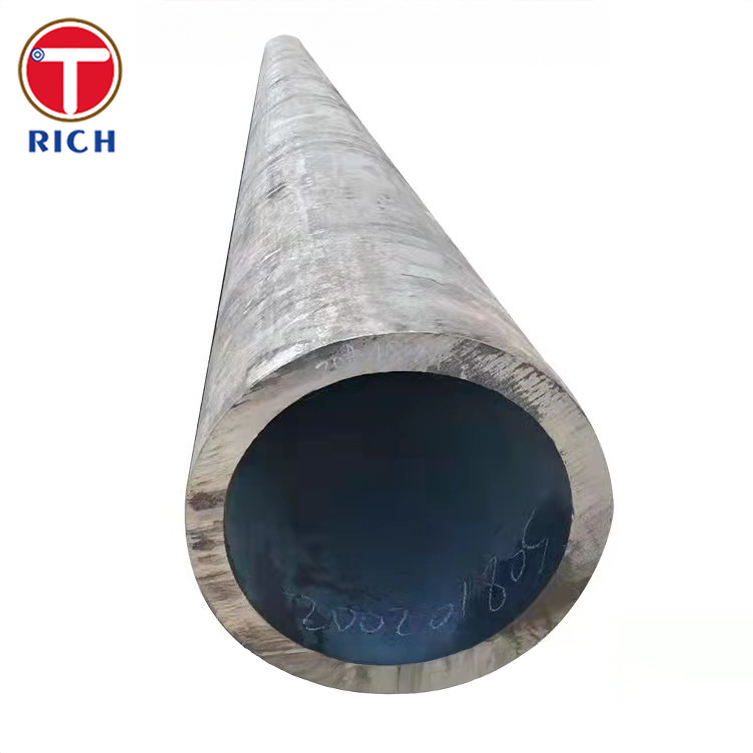

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 1

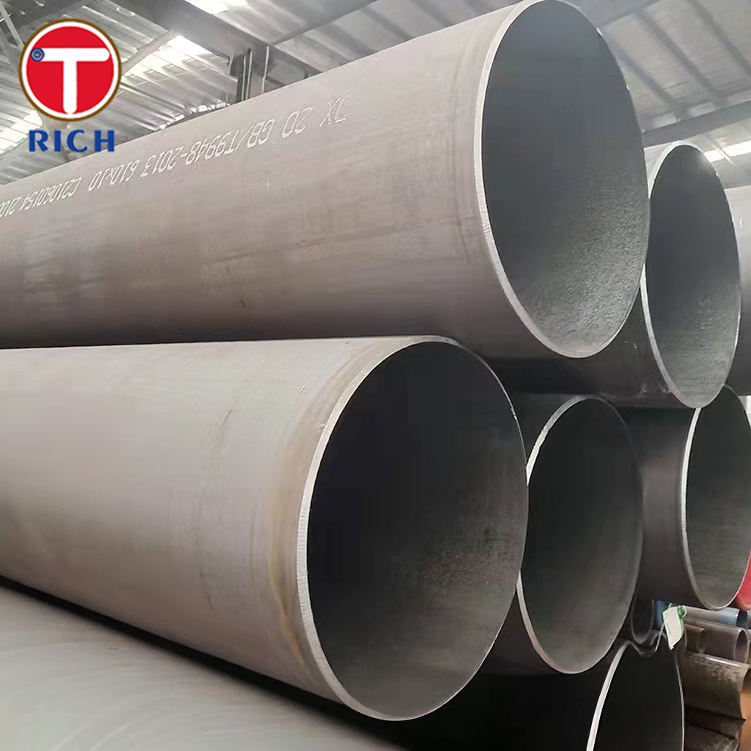

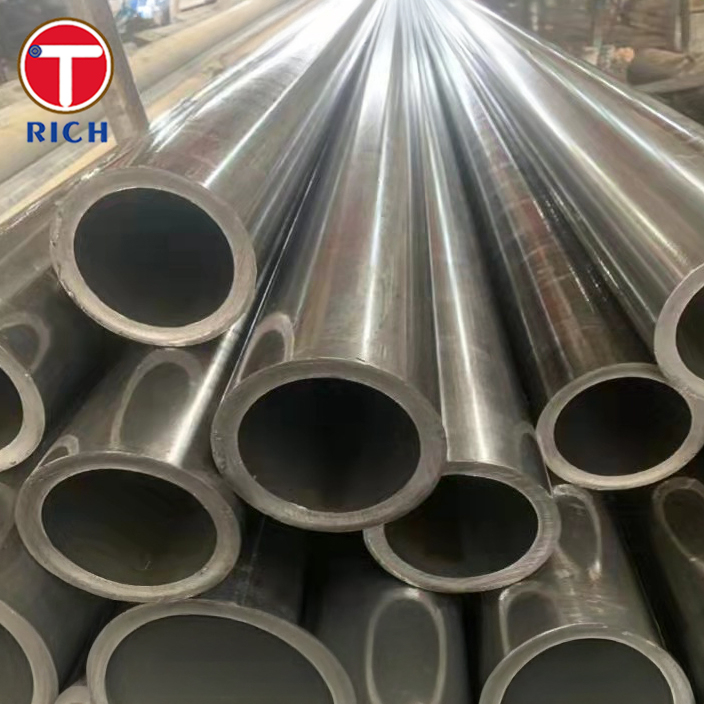

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 2     SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 3

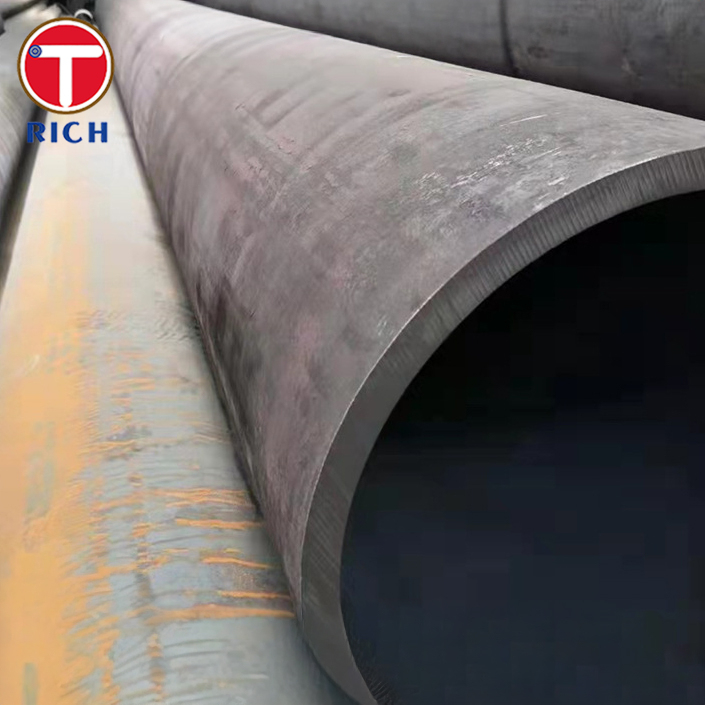

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 4     SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 5


SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 6

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 7

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 8

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 9

SAE J525 Thick Wall Mild Steel Hydraulic Tube for Precision Instruments and Industrial Machinery 10

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.


Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,

it is according to quantity.


Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.


Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
