tubes et tuyaux sans soudure, en acier

TORICH Cold Drawn 210mm OD EN 10305-1 E235 Seamless Steel Tube Brief introduction: Product name: 210mm OD EN 10305 E235 Precision Seamless Cold Drawn Steel Tube Standard EN10305 Size OD:5-210mm WT:1-25mm Usage Construction, Automobile,etc Shape Round Type Seamless Manufacture Cold drawn Packing Usually bundles in cartons The tubes shall be manufactured from hot finished seamless hollows by cold drawing. The tubes shall be delivered in the delivery condition+N which means that

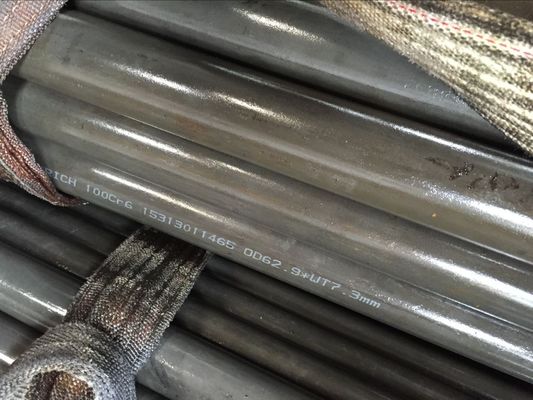

ISO683-17 GCr15 100Cr6 Cold Drawn Seamless Pipe Bearing Tube Steel Grade/Steel Material: Steel Grade mass fraction % C Si Mn P S Cr Mo GCr15 0.95-1.05 0.15-0.35 0.20-0.40 ≤0.027 ≤0.020 1.30-1.65 ≤0.10 100Cr6 0.93-1.05 0.15-0.35 0.25-0.45 ≤0.025 ≤0.015 1.35-1.60 ≤0.10 100CrMnSi6-4 0.93-1.05 0.45-0.75 1.00-1.20 ≤0.025 ≤0.015 1.40-1.65 ≤0.10 100CrMnSi6-6 0.93-1.05 0.45-0.75 1.40-1.70 ≤0.025 ≤0.015 1.40-1.65 ≤0.10 100CrMo7 0.93-1.05 0.15-0.45 0.25-0.45 ≤0.025 ≤0.015 1.65-1.95 0

ASTM A53 Seamless Carbon Steel Tubing For High Temperature Service Applications: For High Temperature Service Size range: O.D. 5-420mm W.T. 0.5-50mm Length max12000mm Steel Gande Chemical Compositionsrade : Grade Chemical Compostion C Mn P S Si Cr Cu Mo Ni V max max max max max max max max max A 0.25 0.27-093 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08 B 0.30 0.27-1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08 C 0.35 0.27-1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08 Grade

ASTM A179 Seamless Cold-drawn Low-Carbon Steel Tubes For Heat-Exchanger and Condenser Applications: For manufacturing pipelines of boilers Vessel equipment Size range: O.D. 5-420mm W.T. 0.5-50mm Length max12000mm Steel Grade, Chemical Compositions and Mechanical Property: Standard Grade Chemical Compostion Mechanical Property C Si Mn P S Cr Mo Mpa Mpa L T EN10216-2 195GH ≤0.13 ≤0.35 ≤0.70 ≤0.025 ≤0.020 ≤0.30 ≤0.08 320-440 ≥195 ≥27 ≥25 P235GH ≤0.16 ≤0.35 ≤1.20 ≤0.025 ≤0.020 ≤0

EN101305-1 seamless cold drawn inside hexagonal shaped steel tube for precision service Products Description: Seamless cold drawn steel tube Application: For Agriculture motor applications, for Agricultural Machines Steel Grade/Steel Material: E215 E235 E355 Size Range: OD 6-380mm WT 1-35mm Length max12000mm Characteristic: Good concentricity Good OD and ID tolerance High Precision Stable quality Smooth Roughness TORICH QUALITY ASSURANCE Production Processs: Cold-drawn

EN101305-1 seamless cold drawn hexagon shaped steel tube for precision service Products Description: Seamless cold drawn steel tube Application: For Agriculture motor applications, for Agricultural Machines Steel Grade/Steel Material: E215 E235 E355 Size Range: OD 6-380mm WT 1-35mm Length max12000mm Characteristic: Good concentricity Good OD and ID tolerance High Precision Stable quality Smooth Roughness TORICH QUALITY ASSURANCE Production Processs: Cold-drawn Chemical

EN10305-1 seamless cold drawn lemon shaped steel tube for precision applications Products Description: Seamless cold drawn steel tube Application: For auto industry/ machinery use/ oil cylinder tube Steel Grade/Steel Material: E215 E235 E355 Size Range: OD 6-380mm WT 1-35mm Length max12000mm Characteristic: Good concentricity Good OD and ID tolerance High Precision Stable quality Smooth Roughness TORICH QUALITY ASSURANCE Production Processs: Cold-drawn Chemical Composition:

EN101305-1 seamless cold drawn fin shaped steel tube Products Description: Seamless cold drawn steel tube Application: For boiler and heat-exchanger Steel Grade/Steel Material: E215 E235 E355 Size Range: OD 6-380mm WT 1-35mm Length max12000mm Characteristic: Good concentricity Good OD and ID tolerance High Precision Stable quality Smooth Roughness TORICH QUALITY ASSURANCE Production Processs: Cold-drawn Chemical Composition: Steel Grade C Si Mn P S Al Steel Name Steel Number

EN10305-1 seamless cold drawn triangle lemon shaped steel tube for precision applications Products Description: Seamless cold drawn steel tube Application: For auto industry/ machinery use/ oil cylinder tube Steel Grade/Steel Material: E215 E235 E355 Size Range: OD 6-380mm WT 1-35mm Length max12000mm Characteristic: Good concentricity Good OD and ID tolerance High Precision Stable quality Smooth Roughness TORICH QUALITY ASSURANCE Production Processs: Cold-drawn Chemical
